Product Description
APAR’s Aluminium Conductor Steel Reinforced Twisted Pair (ACSR/TP) is a specialized overhead conductor comprising two identical bare ACSR conductors twisted together with a controlled left-hand lay. The unique twisted-pair configuration creates a spiral-shaped conductor that significantly improves resistance to aeolian vibration, wind-induced oscillation, and ice galloping.
Designed for transmission and distribution networks operating in challenging environmental conditions, ACSR/TP conductors provide enhanced mechanical stability, reduced maintenance requirements, and improved line reliability while maintaining the proven electrical and mechanical benefits of conventional ACSR conductors. Twisted Pair conductor is most typically built with ACSR component conductors, but is also available with AAC, AAAC, ACAR, TACSR, and ZTACSR component conductors.
Key Advantages
- Excellent resistance to aeolian vibration
- Superior protection against ice galloping
- Reduced wind-induced conductor oscillation
- Lower torsional stiffness for improved dynamic performance
- Supports higher line tensions
- Enables longer span lengths
- Reduces overall transmission line costs
- Improved reliability in harsh climatic conditions
- Proven ACSR-based construction
- Long service life with minimal maintenance
- Available with Non-Specular (Dull) Surface Finish
- Available with Photonic Coating Options
Available Variants
APAR offers ACSR/TP conductors in various configurations based on:
- Standard ACSR conductor designs
- Utility-specific conductor sizes
- Transmission and distribution voltage applications
- Customized twisted pair configurations
- Galvanized steel (GA), Mischmetal (MA), and Aluminium Clad Steel (ACS) core options
- Project-specific mechanical and electrical requirements
Customized designs are available upon request to meet specific utility and EPC project requirements.
Applications
- Overhead transmission lines
- Sub-transmission networks
- Distribution systems
- Wind-prone transmission corridors
- Ice and snow-prone regions
- Mountainous transmission routes
- Long-span overhead lines
- Utility network reliability improvement projects
- Rural and urban power infrastructure
Standards & Quality
APAR’s ACSR/TP conductors are manufactured in compliance with relevant international and utility standards governing component conductors, along with ASTM B911.
Each conductor is manufactured through very stringent quality standards, with rigorous testing at every stage including type testing and validation.
Construction & Material

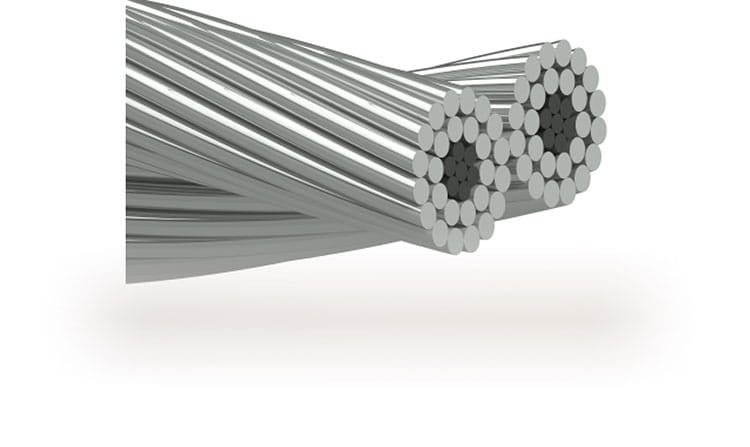

ACSR/TP consists of two identical ACSR conductors twisted around each other using a long lay length configuration.
Each ACSR conductor is constructed from:
- High-conductivity Aluminium 1350-H19 wires
- Galvanized steel core wires
The twisted-pair arrangement creates a spiral conductor geometry that helps disrupt aerodynamic forces acting on the conductor. This significantly reduces the occurrence of aeolian vibration and ice galloping while improving overall line stability under adverse weather conditions.
APAR’s Design & Manufacturing Expertise
APAR manufactures advanced overhead conductor solutions using state-of-the-art stranding technology, precision conductor engineering, and stringent quality control processes.
Our capabilities ensure:
- Accurate conductor twisting geometry
- Identical component conductor tension
- Consistent electrical performance
- Superior vibration resistance characteristics
- High mechanical reliability
- Enhanced long-term durability
- Compliance with global utility standards
With decades of expertise in transmission conductors, APAR supplies ACSR/TP solutions to utilities, EPC contractors, and infrastructure projects worldwide, helping improve grid reliability and operational performance.
